Small footprint

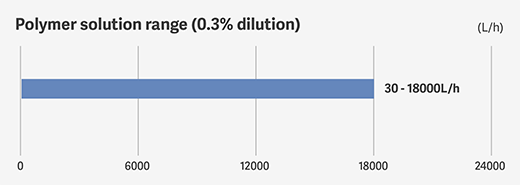

Polymore is a very compact solution for capacities ranging from 30 to 18000 L/h polymer solution. Despite it’s compactness, it still enables convenient accessibility for service and maintenance.
In-line polymer make-up system
for liquid polymer
Auxiliary
Polymer Make-up System

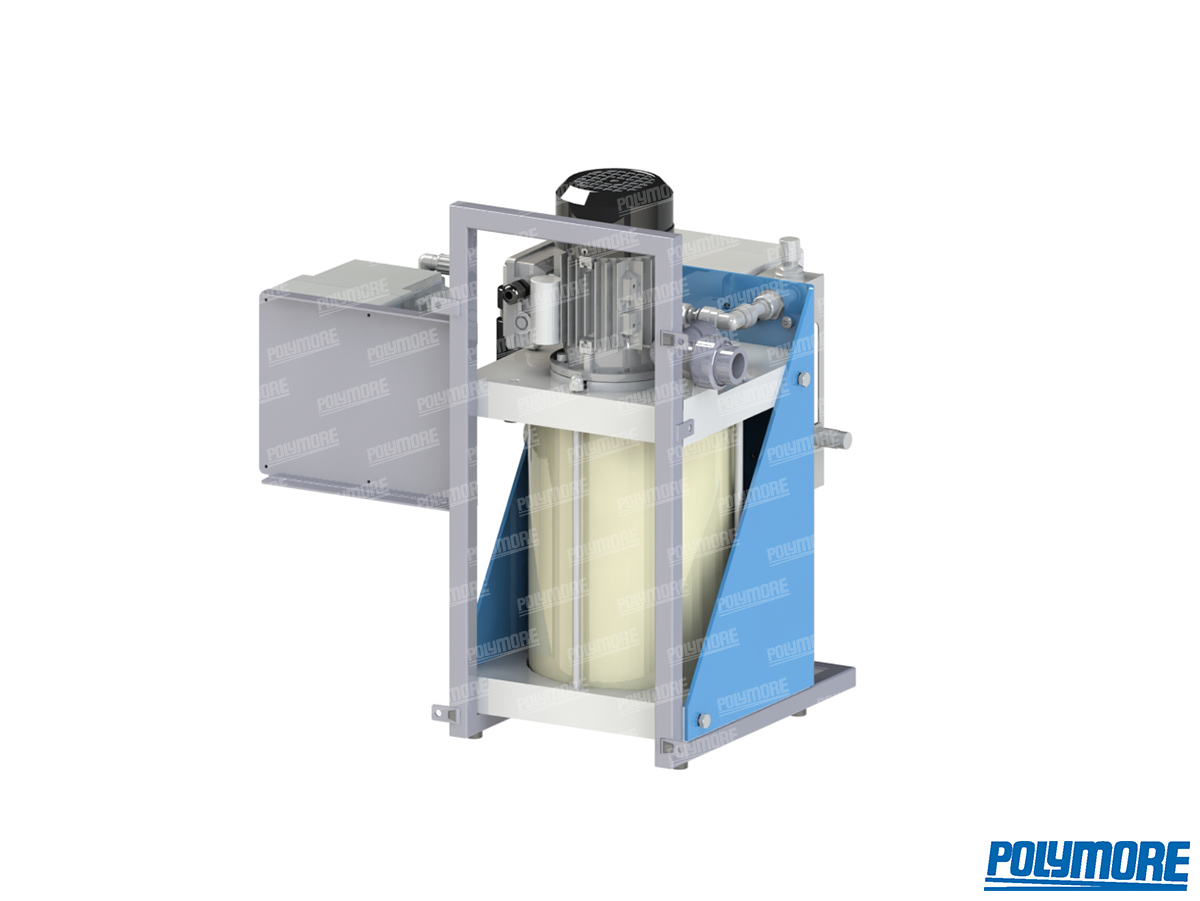

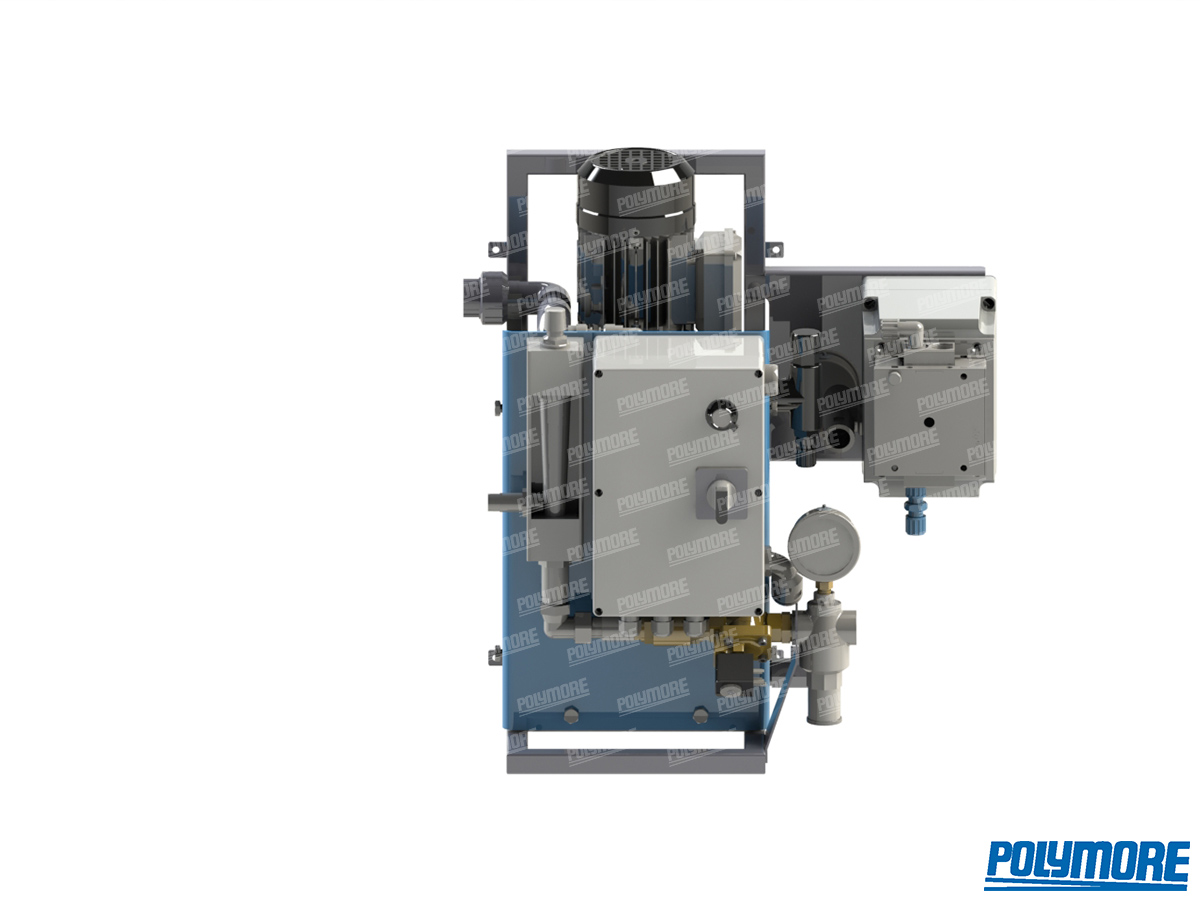

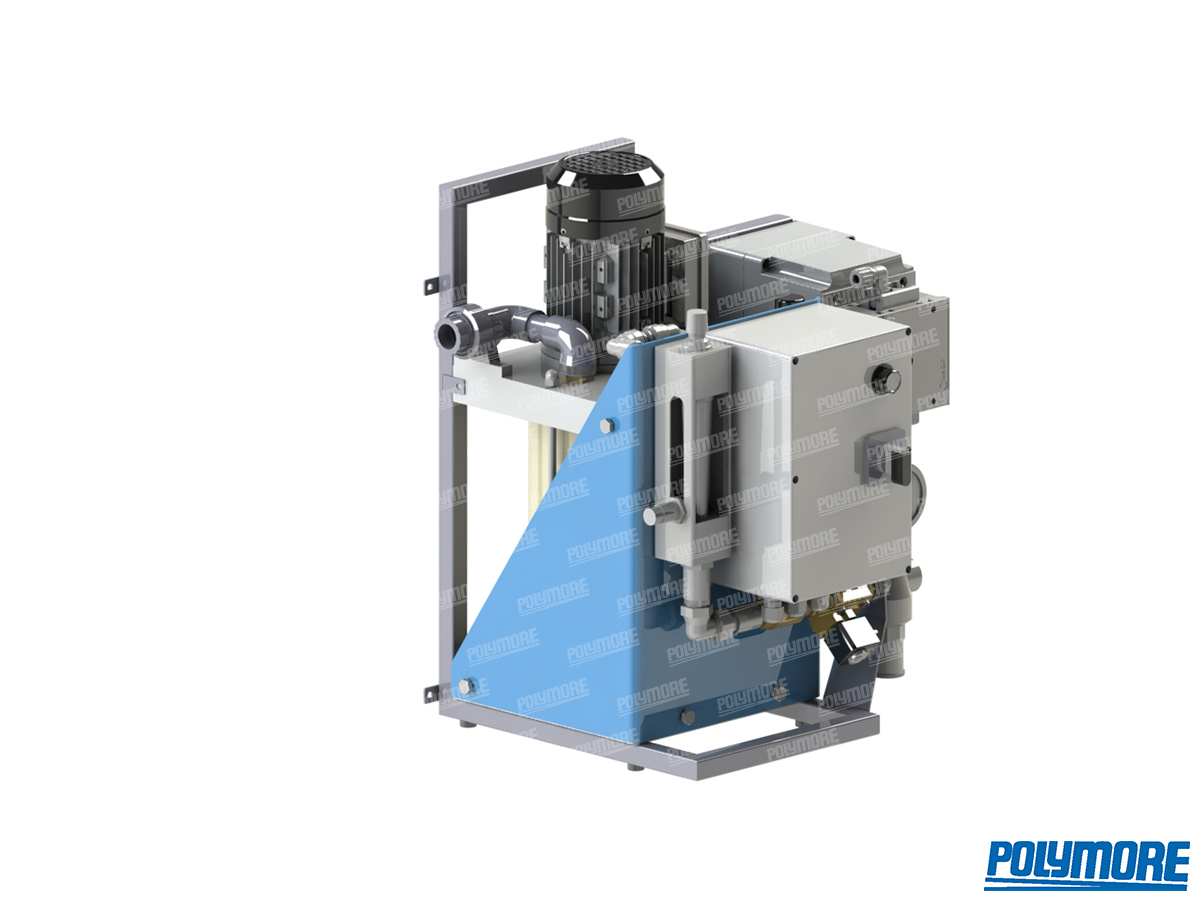

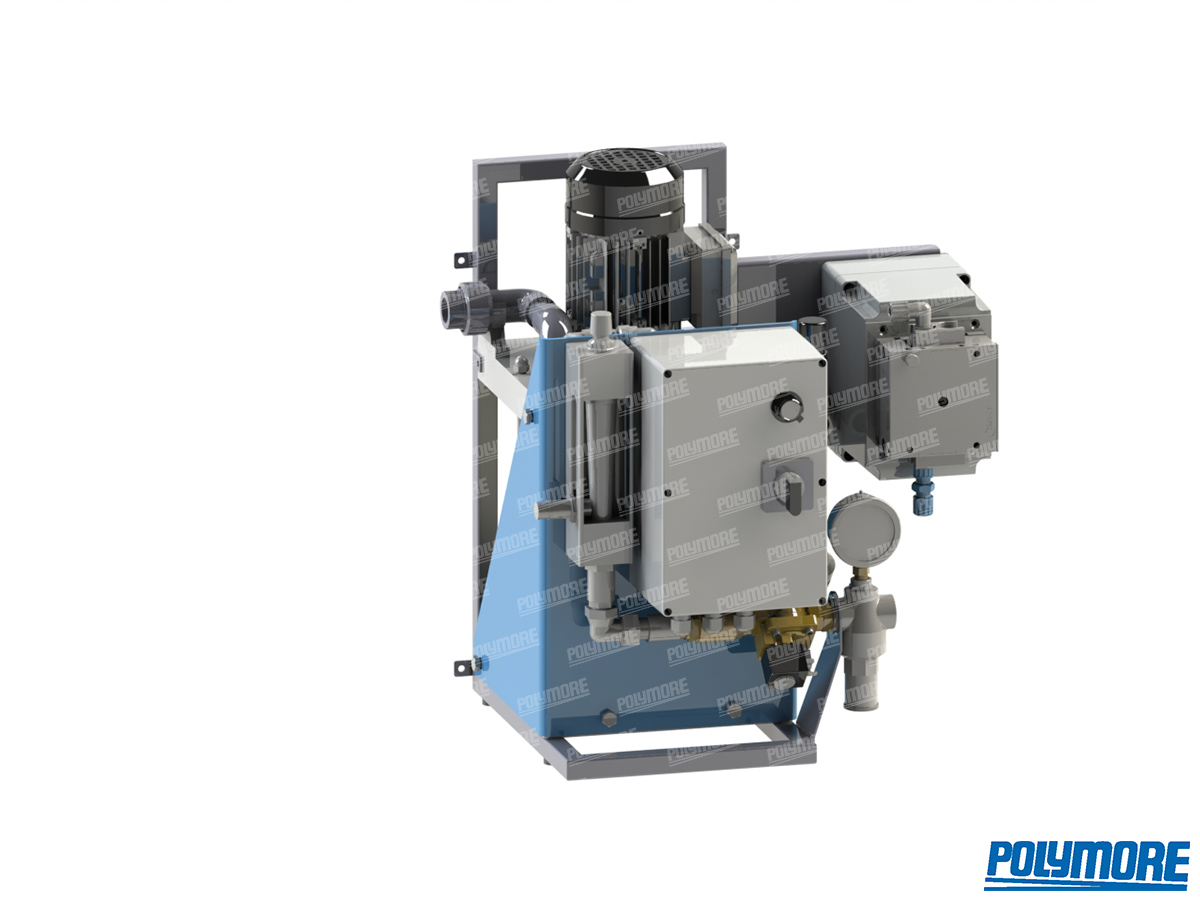

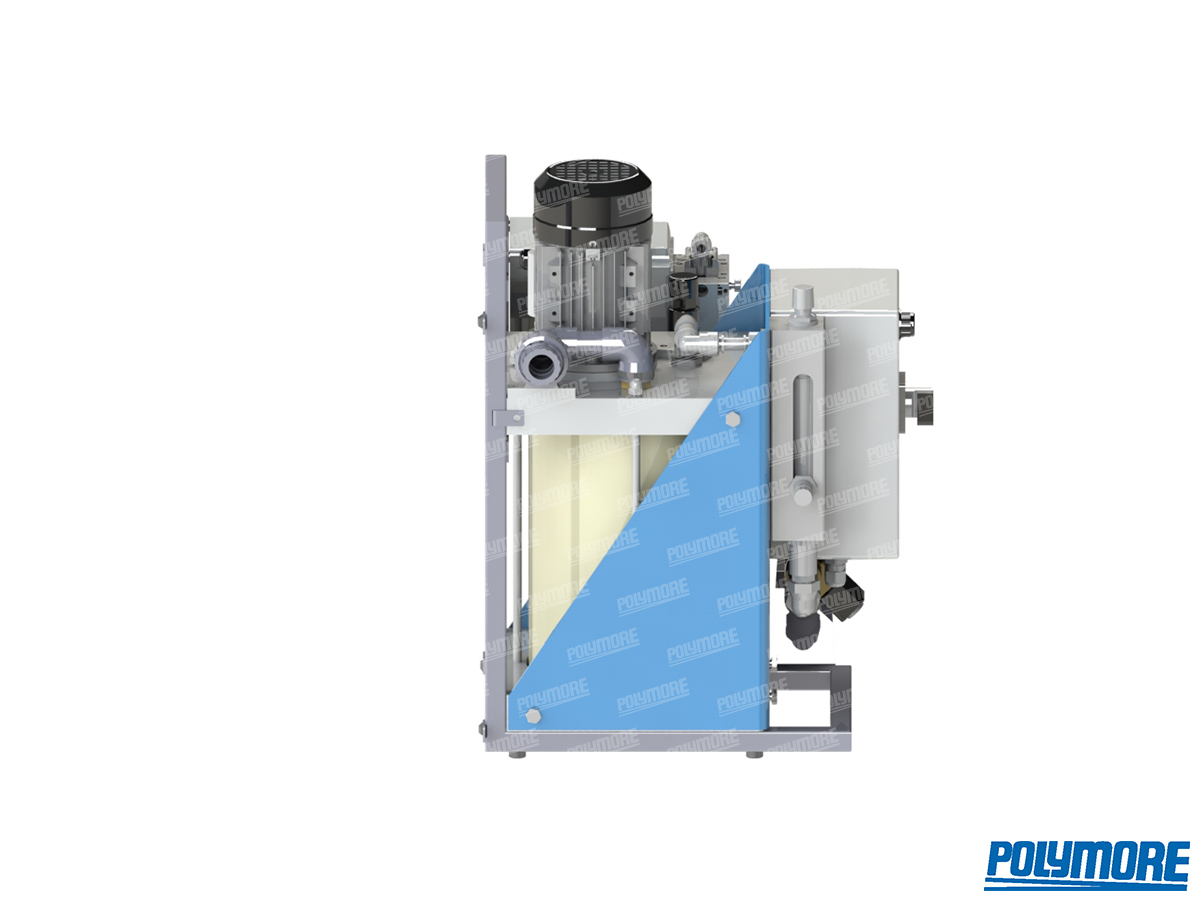

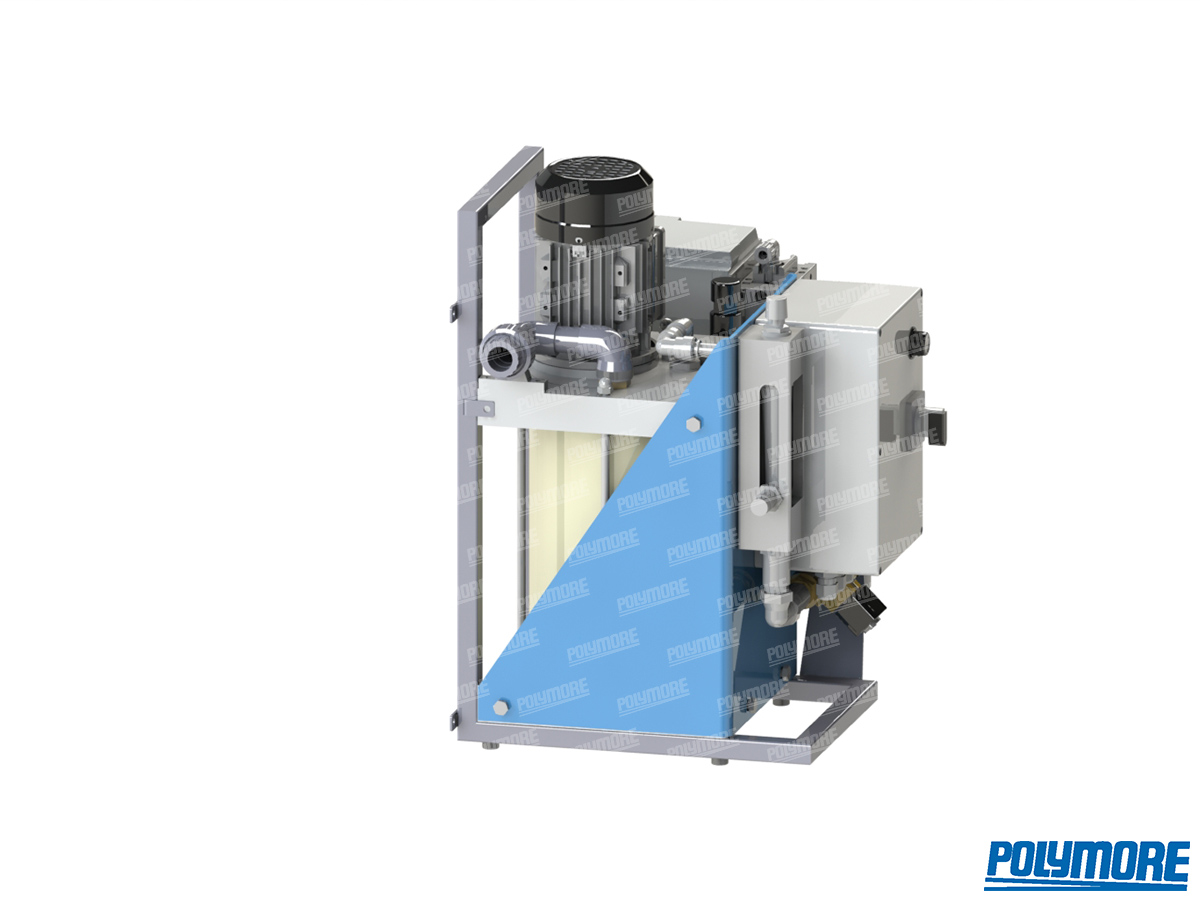

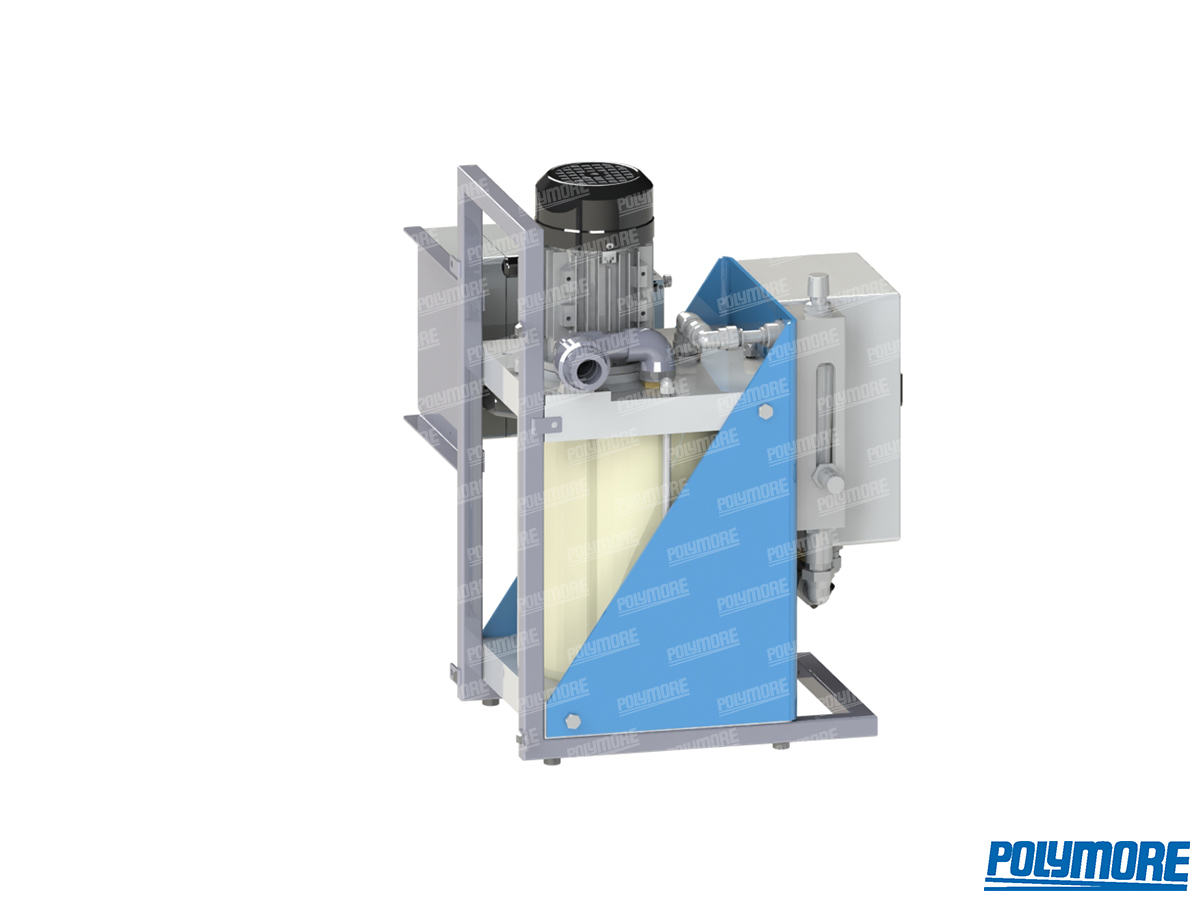

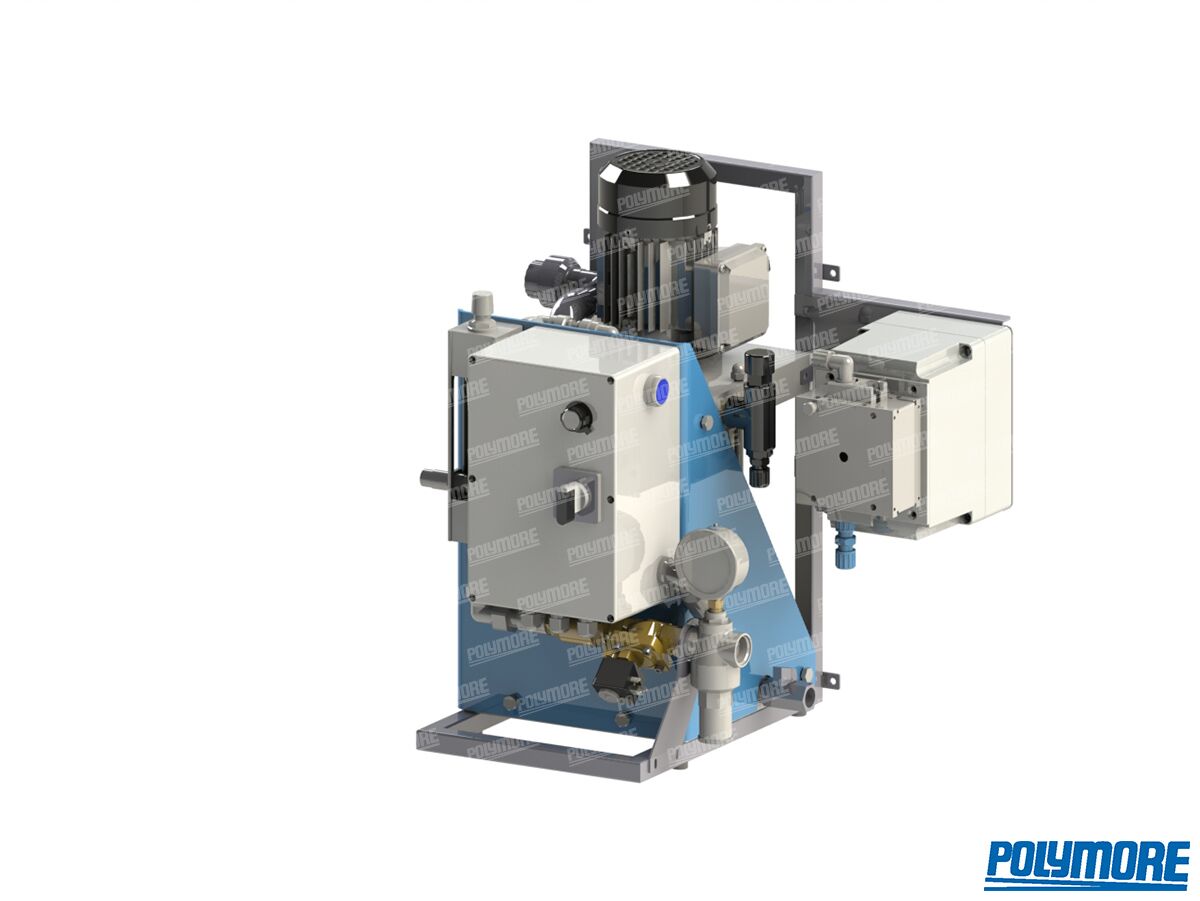

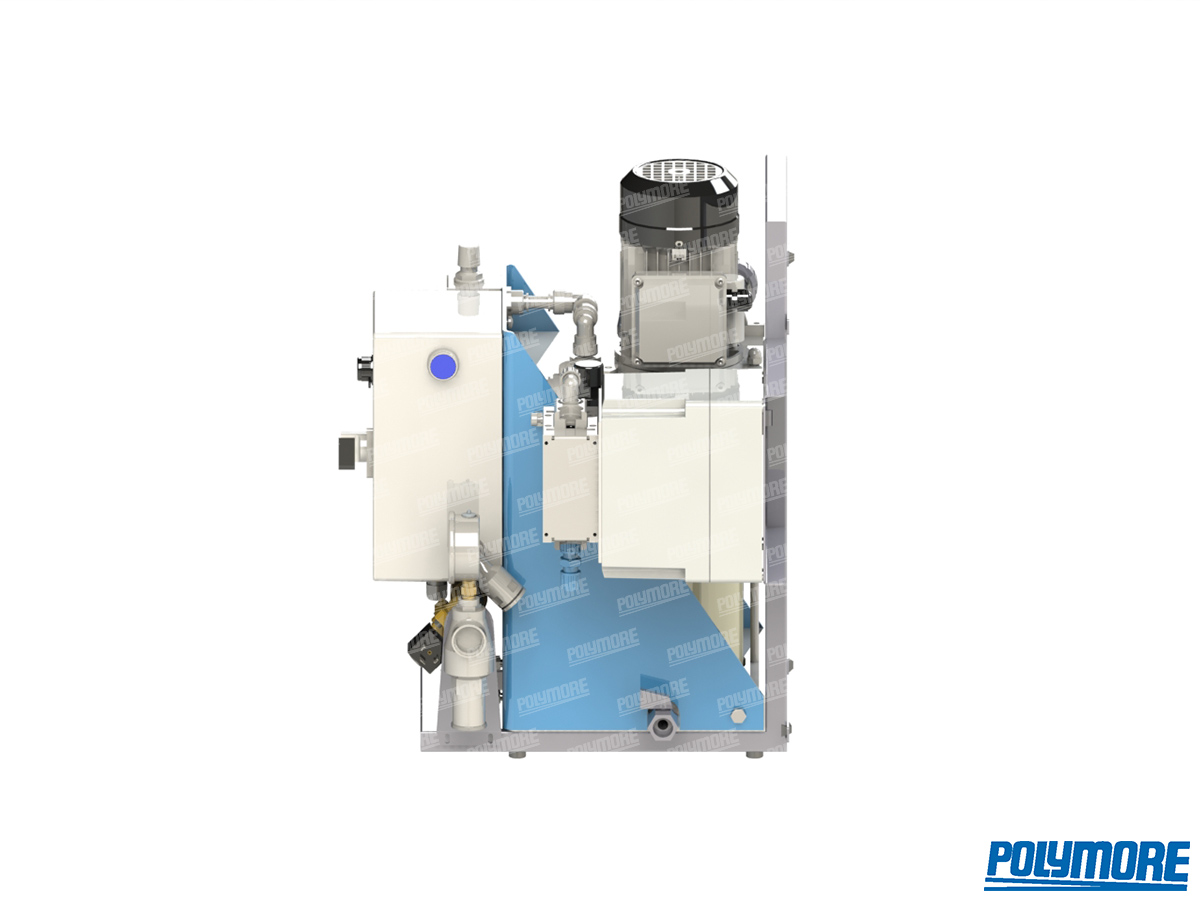

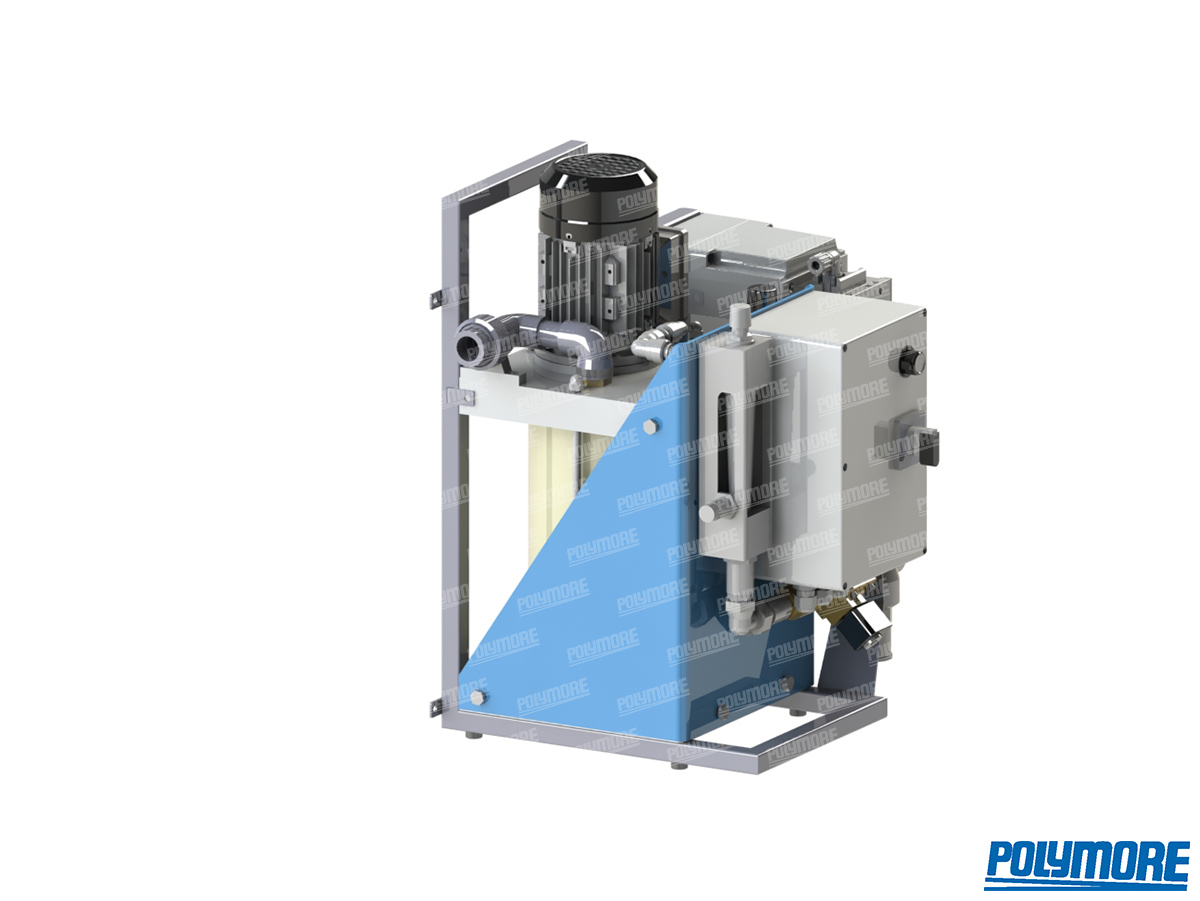

POLYMORE

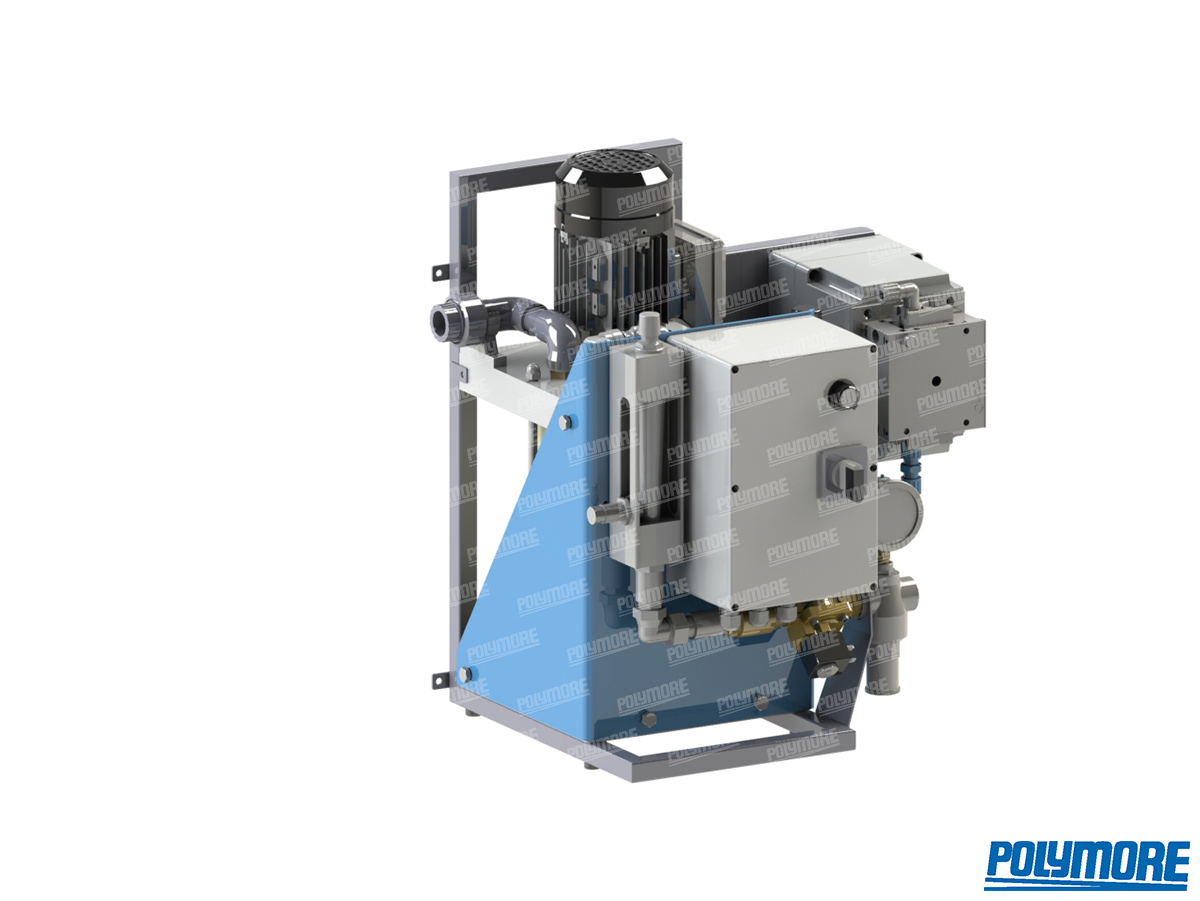

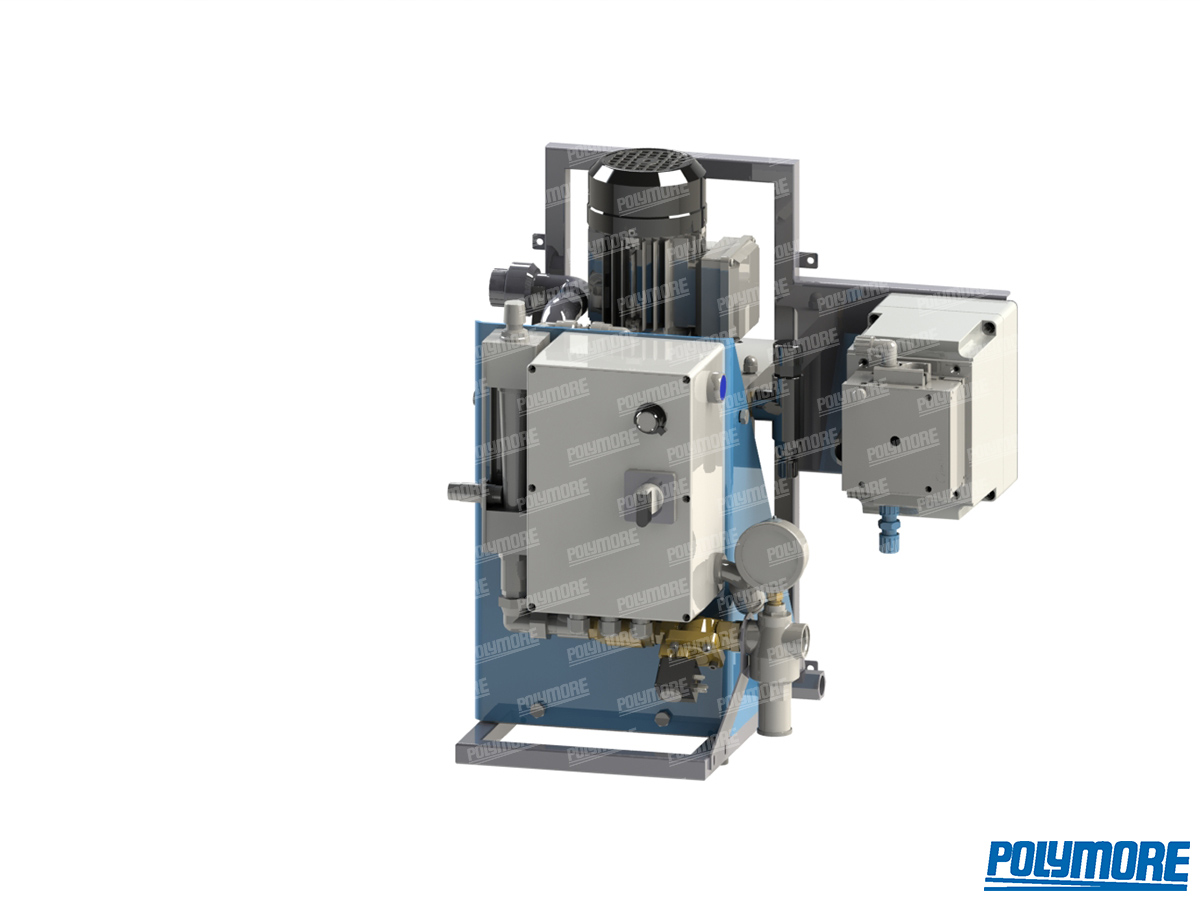

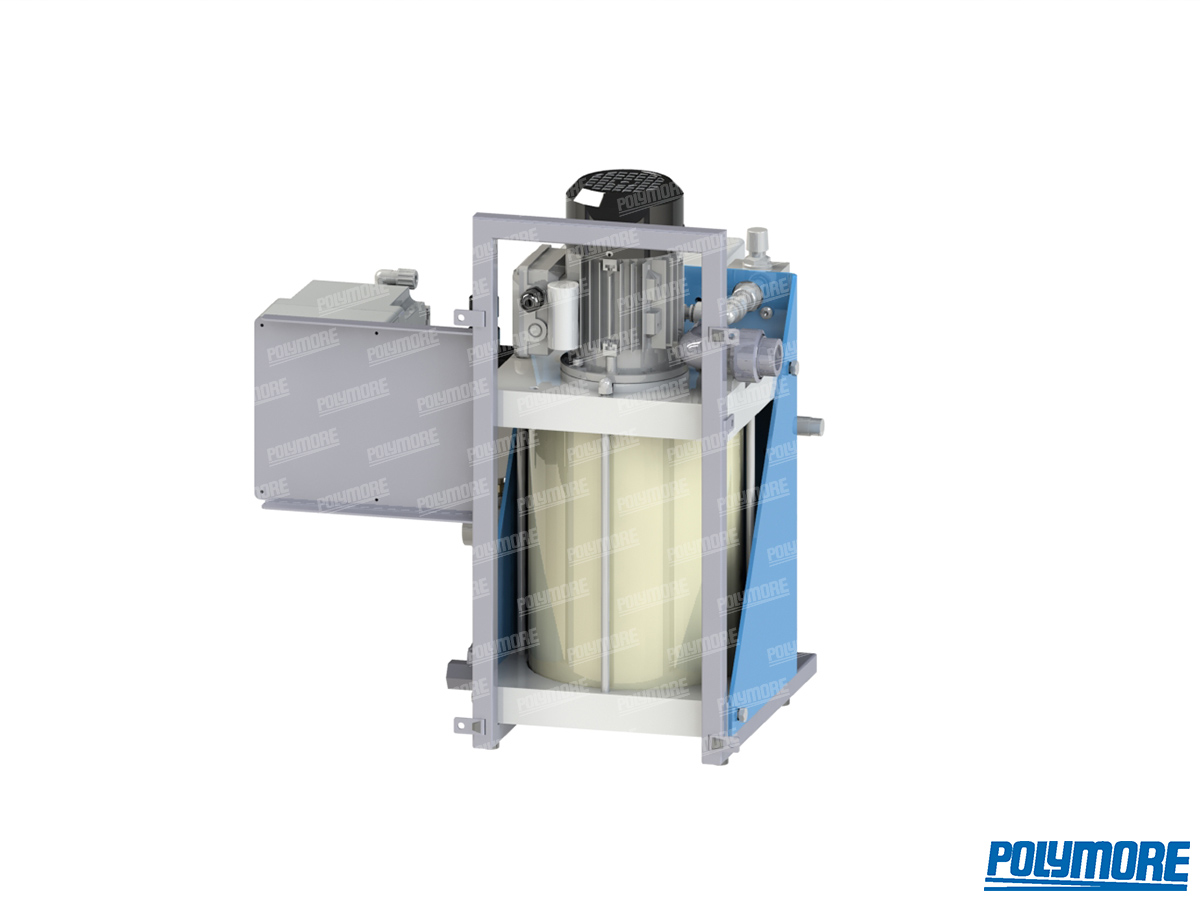

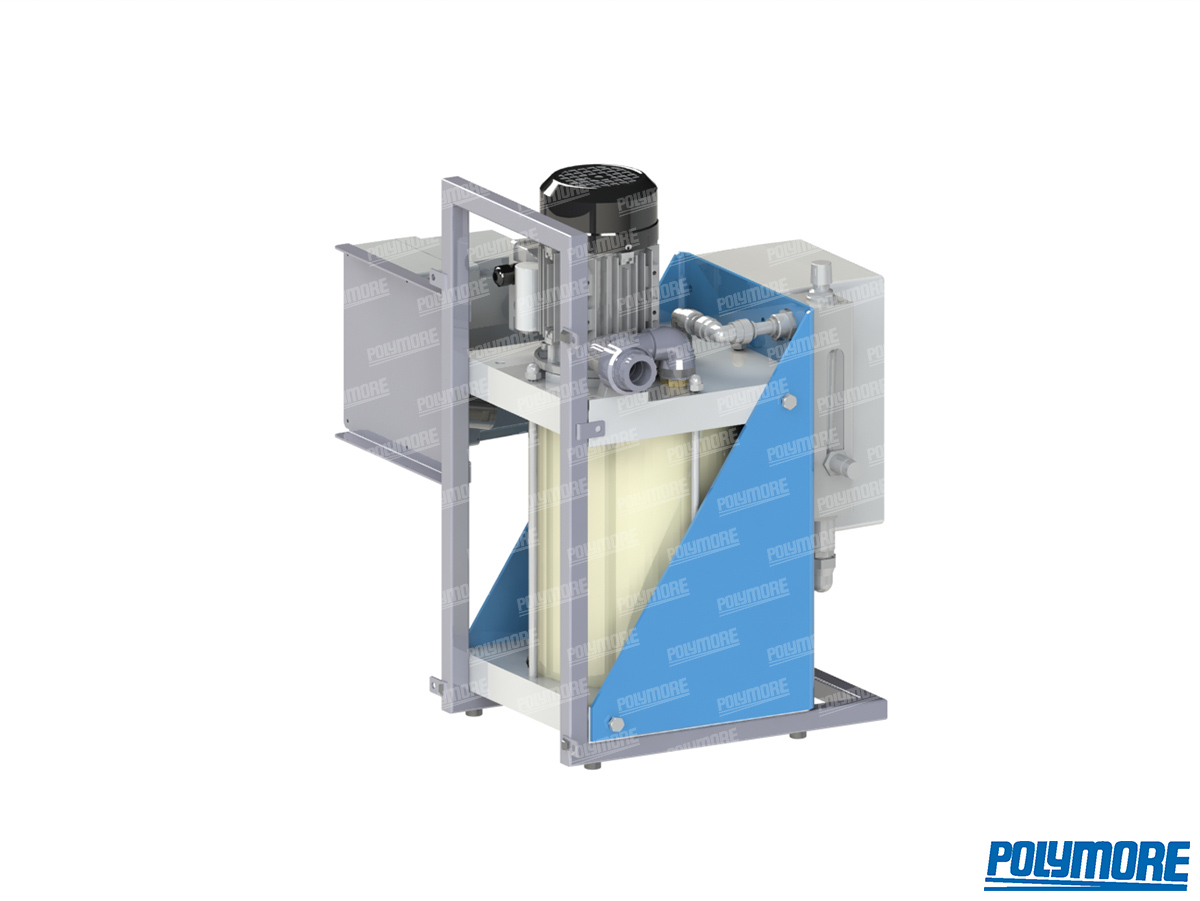

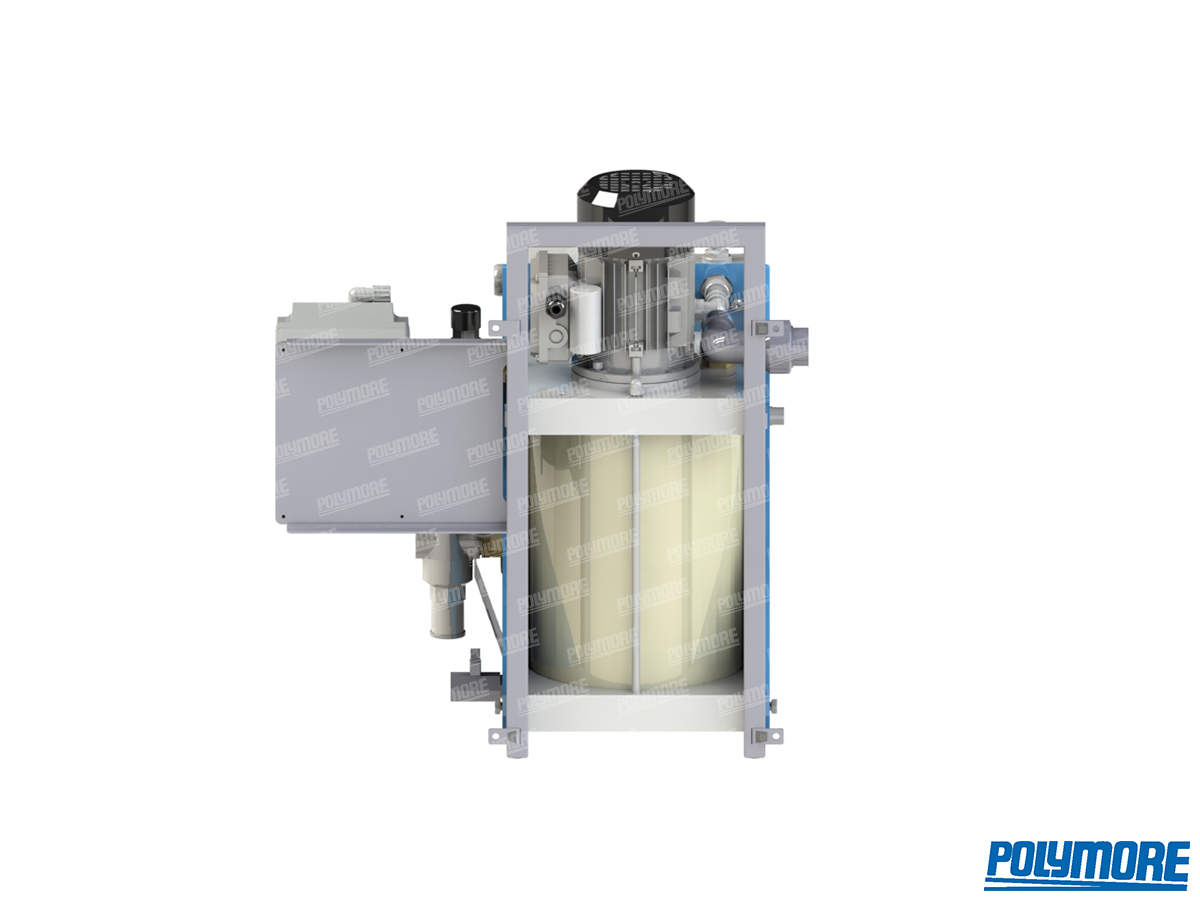

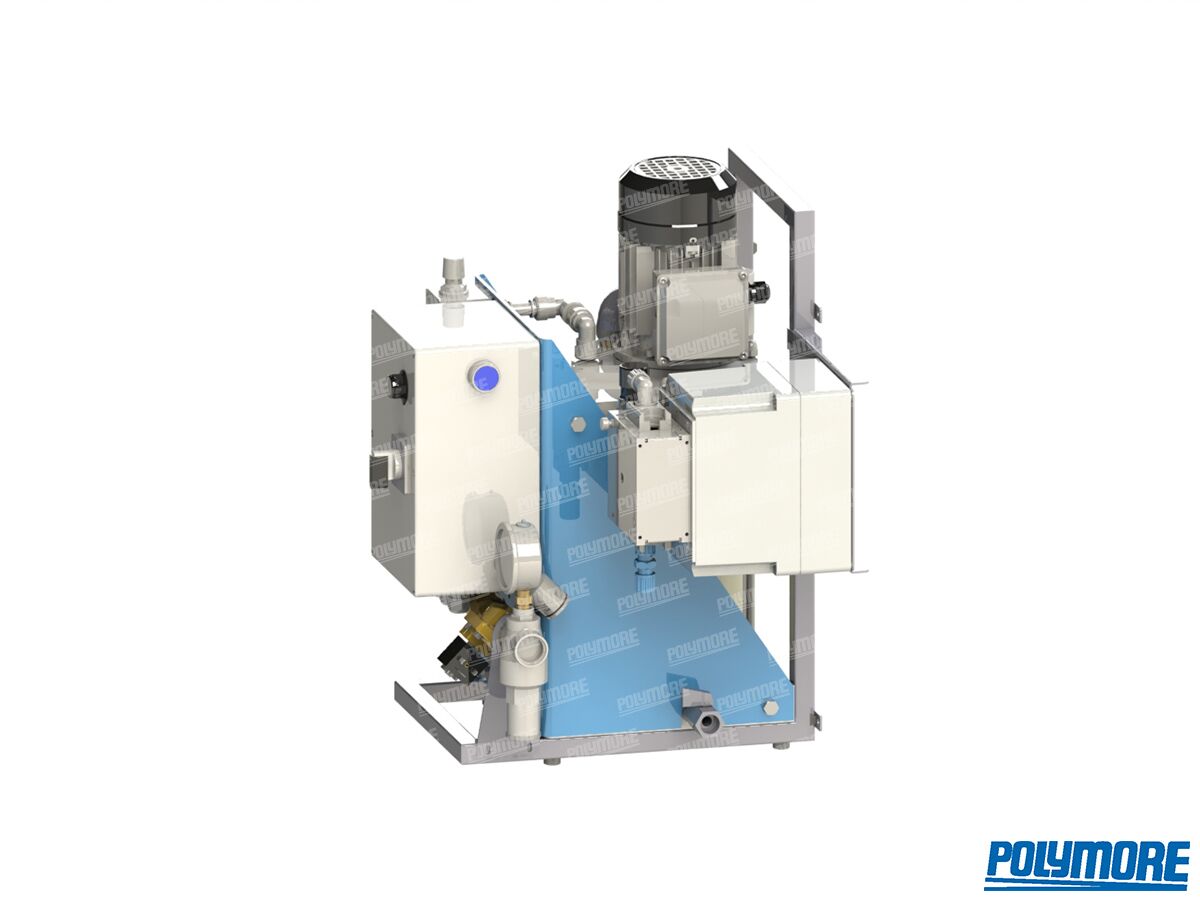

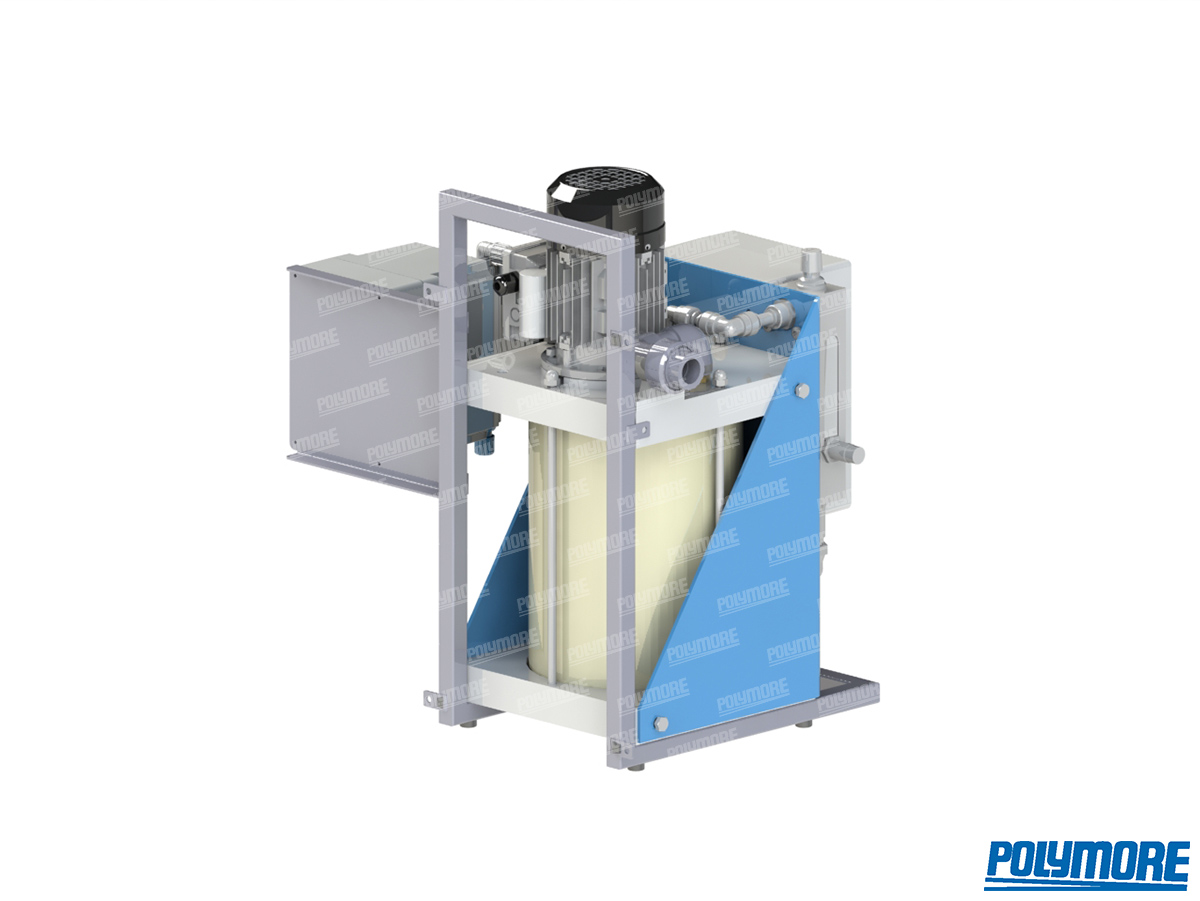

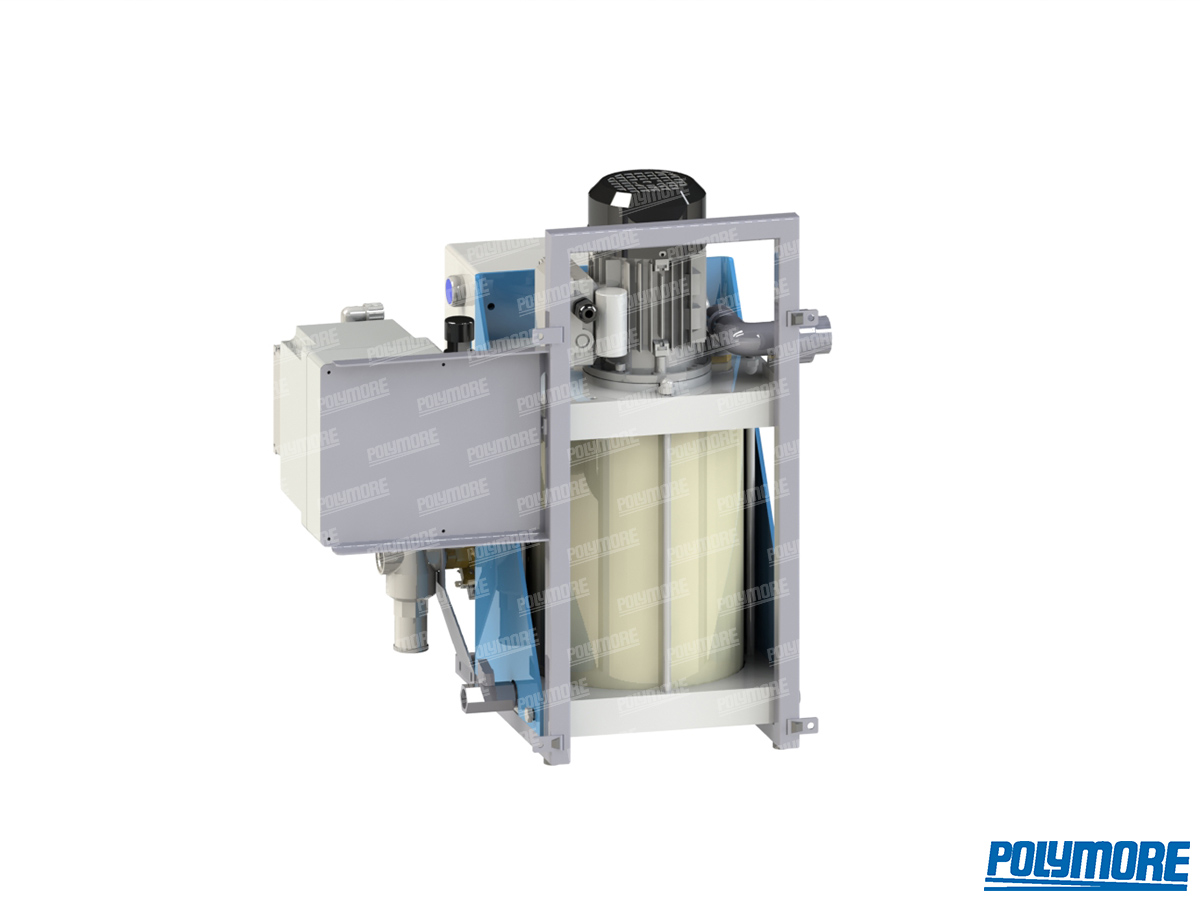

Polymore units are arguably the European standard when it comes to in-line mixing and preparation systems for liquid polymer. It is manufactured by the Swedish company POLYMORE and characterized by a build-quality and reliability matching our VOLUTE™ units. The system fits perfectly with our technology in that it is compact, simple to operate, precise and delivers great results.
ADVANTAGES
Easy operation
Simple and intuitive adjustment of dilution water amount and polymer concentration is all that is needed—the rest is automatic. The hardware and software in the VOLUTE™ control panel are designed to integrate seamlessly with Polymore, ensuring smooth cooperation between the two systems.
No chemical dosing pump required
Polymore is an inline system that uses standard tap-water pressure to prepare and dose the polymer solution into the VOLUTE™. No need for a separate dosing pump reduces CAPEX and maintenance costs.
POLYMORE Specification List
| Polymore Model | Max. pump capacity for liquid polymer product [L/h] | Max. dissolving water capacity [L/h] | Dimensions [mm] | ||
|---|---|---|---|---|---|
| L | W | H | |||
| micro 0,5 | 0.12 | 30 fixed | 500 | 425 | 540 |
| mini 10-1,2 | 1.2 | 600 | 520 | 420 | 535 |
| duo 40-6,0 | 6 | 2 400 | 640 | 505 | 590 |
| midi 300-54 | 54 | 18 000 | 800 | 630 | 1020 |
This is a sample of the product range, ranging from the smallest to the largest details. Please contact us for specific models.
Flow for Product Installation
Feel free to contact us. After collecting information about your treatment process and needs, we will recommend the most suitable model for your situation. You can use our free sample analysis service if you are unsure about dosage rates and polymer type; we will send you a report stating the expected amount and type of polymer to be dosed, dry solids content of the dewatered cake, recommended technology, etc. Based on your requests we will then prepare a tailored solution proposal. Before handover of the equipment, our service engineer will commission the unit on site and train the local operators to ensure the optimal result for you.
