Containerized Solution: Waste Activated Sludge Dewatering in 4 820 PE WWTP
Municipal WWTP, Czech Republic
- VOLUTE™ Dewatering Press
- WAS (SAS)
- Municipal WWTP, Czech Republic
This municipal wastewater treatment plant (WWTP) uses the activated sludge process.

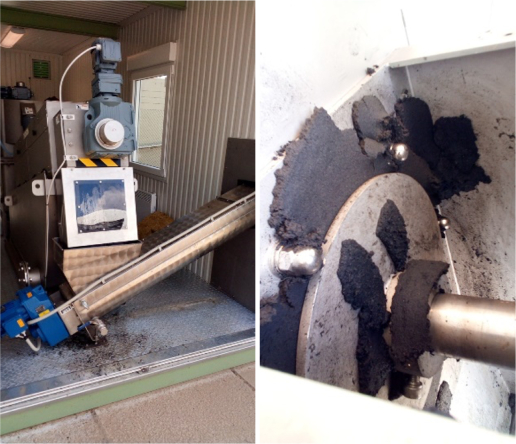

The plant was already too small for possible extension, so the customer decided to use our VOLUTE™ containerized dewatering solution. WWTP mainly serves the village of Šanov, and then sludge from surrounding municipalities from septic tanks of different quality. The customer had already had a good experience with our VOLUTE™ Dewatering Technology in another site operation.
Wastewater treatment plant conditions and performance data
| CONTAINERIZED UNIT: | GS-301-SA-CE |
| Sludge Type: | WAS |
| Solids Concentration: | ~ 2.2 % |
| Flow Rate: | ~ 2.25 m3/h |
| DS Throughput: | ~ 49.5 kg-DS/h |
| Dry Solids Content: | ~ max. 20.9 % (normal 17-18%) |
| Capture Rate: | ~ 90% |
| Polymer Dosage: | ~ 11 g/kg-DS |
